SPS1200e IPC is an Industrial workstation designed for the harshest of environments. Available with Windows 10 Pro OS and your choice of SPS Gaging Software. The DV1200 IPC is embedded with a 17 inch Touchscreen monitor. Cooling options include Tri-Stage Fan Assembly and Air Conditioned Cooling.
SPS1200e IPC Brochure < Click Here>
QK800 Series Workstation is a fully integrated, All-In-One, Touchscreen PC , available with Windows OS only or with the addition of SPS Gaging Software . The QK800 Series is available in screen sizes - 10.1" and 21.5".
QK800 Series Brochure < Click Here>
DV2400 IPC “NEW PRODUCT” is a fanless, compact, Industrial PC (IPC) with increased processing power to Intel I3 and I5 CPUs, high-speed SSD drives and Windows 10 Pro OS. Combine with your choice of SPS Gaging Sofware. Custom configurations of processor, memory, and I/O available. Assorted Keyboards and Monitors are also available.
DV2400 IPC Brochure < Click Here >
DV1200 IPC is a fanless, compact, Industrial PC (IPC) with Windows 10 Pro OS. Combine with your choice of SPS Gaging Sofware. Custom configurations of processor, memory, and I/O available. Assorted Keyboards and Monitors are also available.
DV1200 IPC Brochure < Click Here >

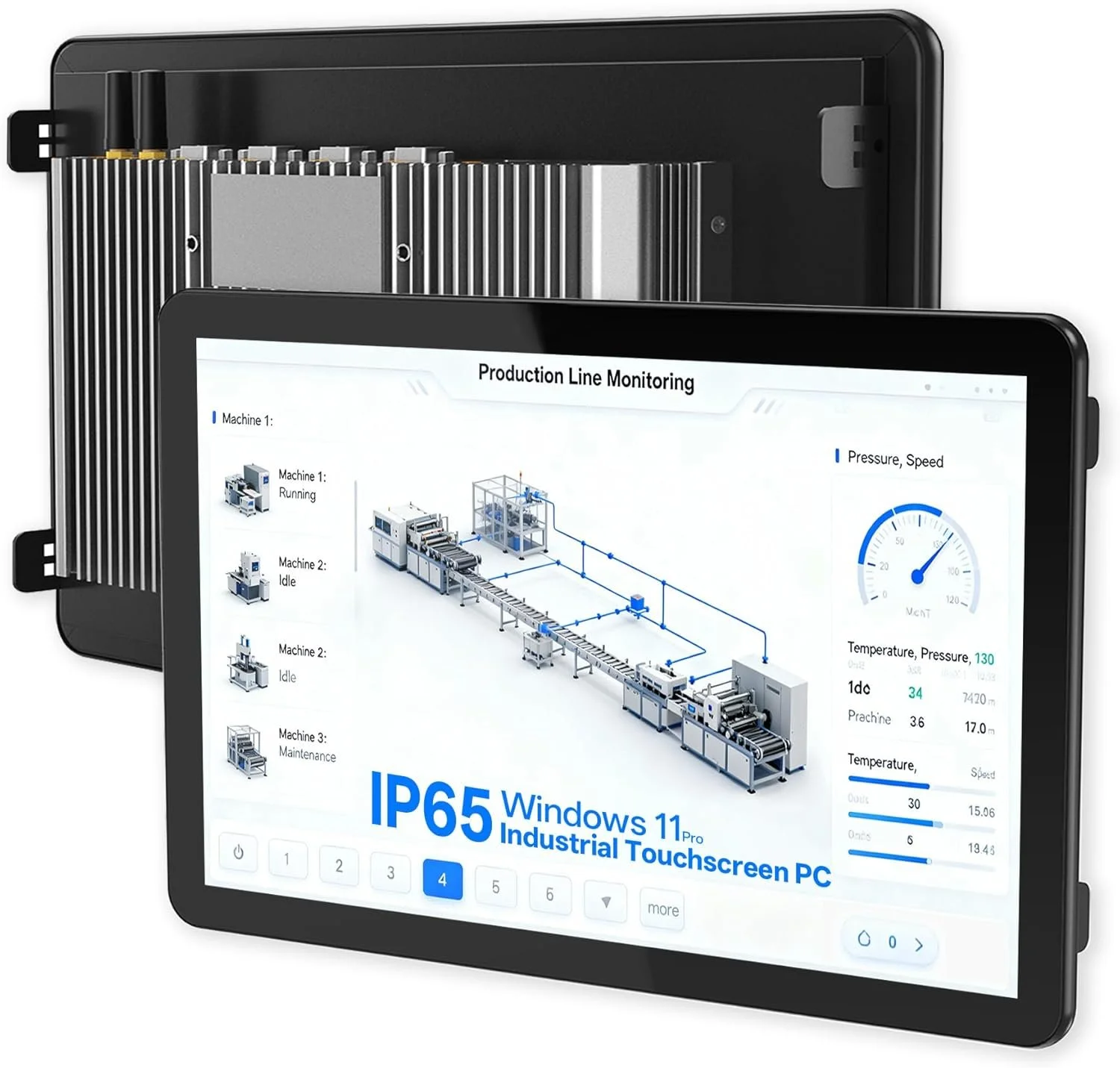

PM4800 Series IPC “NEW PRODUCT” is a fanless, All-in-One, Industrial-Panel Mount PC (IPC) available with Windows 10 / 11 Pro OS. Available with 15.6” / 18.5” / 21.5” Touchscreen Display options and Intel i3 / i5 / i7 processors.
PM4800 IPC Brochure - 15.6” Display < Click Here >
GageXpress Pro is a complete SPC Gaging Software package suitable for both manual and automatic gaging applications. Fully configurable by the user with SPC data collection and charting, Gage R&R studies, tool and temperature compensation options, with a library of standard metallurgical formulas. QDAS compliant.
GageXpress Pro Brochure < Click Here >
ComGage is an inexpensive Gaging Software package providing extreme gage screen configurability. This product is suitable for most manual and automatic gaging applications. ComGage Software can interface to most gaging sensor types. QDAS compliant.
The New Product Series of computers, displays, and digital probes is an innovative gaging solution for most gaging applications - includes the CD43 and CD73 computer/displays complete with ComGage Level 1 Software, SD1 Digital Indicator, IMS Digital Gaging Transducers. QDAS Compliant.
New Product Series Brochure < Click Here >
ProXnet IMBUS Series of modular interfaces provides connection of industrial sensors to a PC or PLC via standard networks such as Profinet, Profibus, Ethernet, RS32, and USB. Sensor interfacing includes analog lvdts, prox sensors, digital indicators, calipers, a/e converters and more. QDAS Compliant
ProXnet IMBUS Series Brochure < Click Here >
The ProX200 Column Gage is an extremely versatile instrument available in both horizontal and vertical displays and connects to any of the ProXnet IMBUS Series modules, including the new Digital Probe module for single point mastering. Modules can be mixed for increased versatility. Column Gage is fully configurable by the end-user via front panel or PC. Up to 8 sensor inputs of same or mixed type and up to 8 characteristics. Popular gaging configurations are mixing LVDT transducers (IMBUS LVDT Module) with Air/Electronic Converters (IMBUS A/E Converter Module), or as a dedicated LVDT or Air Column. RS232 Output standard with optional PLC interfacing available. QDAS Compliant.
Industry Standard, Reliable, Serviceable
Sterling ProMeasure Systems Automatic Gages use industry standard Allen Bradley PLC and HMI products. RSLogix 5000 is used for all PLC programming and FactoryTalk View ME or Connected Components Workbench is used for all HMI programming, dependent on the HMI selected.
Control of pneumatic valve operation and functional IO is performed via intelligent Ethernet/IO based valve stacks. Numatics and SMC brands available.
All gage movement functions are monitored while in operation and appropriate HMI diagnostic information is presented to the operator or technician via the HMI should the motion not successfully complete as well as other unexpected events occur (part removal while in operation etc). For customers who have the capability to collect real-time data for historical retention from the Gage PLC via an in-house SCADA system.
Computer-less gaging is an option where the gage PLC or in-house SCADA system performs the tolerance/limit checks versus a computer based software solution. This can result in increased reliability as the computer is removed from the solution.
Sterling ProMeasure Systems, Inc. can provide Design and Build of most forms of Gaging including Attribute Gaging and Variable, Manual Bench Gaging, Semi-Automatic Gaging, and Full Automatic Gaging.
Applications include most automotive engine, transmission, and differential components including engine blocks and heads, camshafts, crankshafts, armature shafts, bearings, sleeves, pistons, pump housings, torque converters, manifolds, connecting rods, and more. Aerospace applications include engine blade, vanes, disks, and more.
Part sensing is performed by both contact and non contacting methods including digital and analog gaging probes, air to electronic conversion, and laser and visions systems. Gaging software is fully user configurable with an embedded library of standard formulas, and corporate level approved by most major automotive companies.
The Orbit® 3 Measurement System using Contact Measurement Transducers provides a cost effective solution for a wide range of gauging, measuring or positioning in diverse industries. Whether in the laboratory or in a manufacturing environment, the Orbit 3 System provides an extensive range of spring, pneumatic, and feather touch actuated transducers.
Orbit 3 Gaging Transducer Brochure < Click Here >
A new family of Block Gauges make precision measurements of bores and cavities a simple and reliable process. These devices are recommended in applications where space is limited and where the use of axial probes is not possible. The family of universal gauges includes 2 mm, 5 mm and 10 mm measurement ranges.
Block Gauge Brochure < Click Here >
Digital Flexures are the ideal solution for high precision/ high volume post process or in process gauging applications where cycle time is short and high throughput would shorten the life of a conventional pencil probe. There are no sliding parts to wear out or to cause friction within the frame or sensor which makes flexures virtually free from hysteresis.
Digital Flexures Brochure < Click Here >
WiGauge brings freedom to roam and increased efficiency to gauging stations and work practices. The ability to work without cables means that the gauging process is not restricted by cable length and routing, or the risk of cable damage. Post process gauging stations become more flexible and with the ability to connect multiple WiGauge™ to a single receiver, cable tangles are eliminated in multi-point gauging applications.

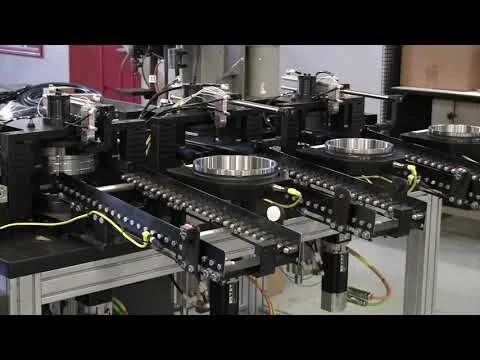

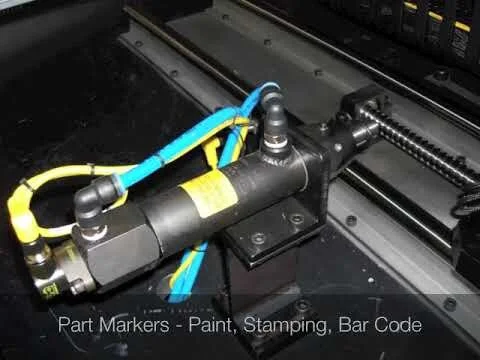

This section includes videos of various gaging applications that were designed and built in-house, using SPS electronics and software products located on this website.
Click the Play button located on the center of the video to begin.
